Lanka Micro

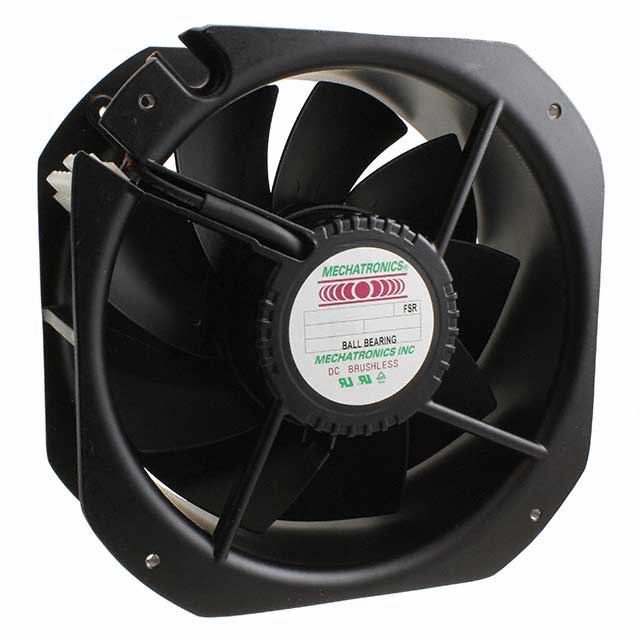

MM22580H24B-FSR
| Manufacturer: | Mechatronics Fan Group |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | MM22580H24B-FSR | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 225X80MM 24VDC | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3600 RPM
- Noise
- 65.0 dB(A)
- Width
- 80.00mm
- Series
- MM22580H
- Weight
- 3.5 lbs (1.6 kg)
- Air Flow
- 755.0 CFM (21.14m³/min)
- Fan Type
- Tubeaxial
- Features
- Thermal Overload Protector (TOP)
- Approvals
- UL
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- -
- Static Pressure
- 1.400 in H2O (348.7 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Magnesium Alloy
- Material - Frame
- Magnesium Alloy
- Size / Dimension
- Square - 225mm L x 225mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 4.20A
- Operating Temperature
- -
