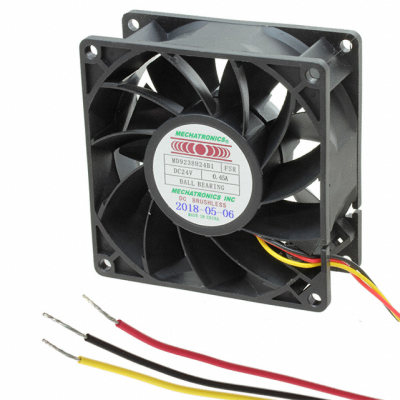

MD9238H24B1-FSR
| Manufacturer: | Mechatronics Fan Group |
In Stock 19 pcs
|
|
|---|---|---|---|
| Datasheet: | MD9238H24B1-FSR | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 92X38MM 24VDC WIRE | $16.23 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4400 RPM
- Noise
- 53.5 dB(A)
- Width
- 38.00mm
- Series
- MD9238
- Weight
- 0.397 lb (180.08 g)
- Air Flow
- 100.7 CFM (2.82m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach), Thermal Overload Protector (TOP)
- Approvals
- CE, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- -
- Static Pressure
- 0.600 in H2O (149.5 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.450A
- Operating Temperature
- -
