Lanka Micro

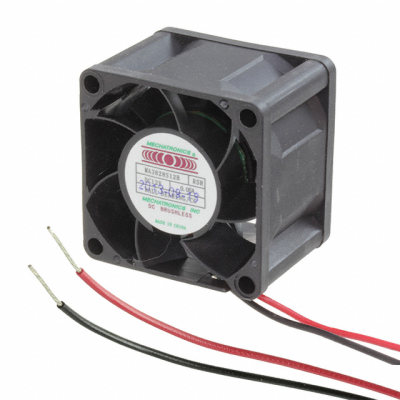

MA3828S12B-RSR-CC
| Manufacturer: | Mechatronics Fan Group |
In Stock 21 pcs
|
|
|---|---|---|---|
| Datasheet: | MA3828S12B-RSR-CC | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 38X28MM 12VDC WIRE | $14.21 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 5000 RPM
- Noise
- 30.8 dB(A)
- Width
- 28.00mm
- Series
- MA3828
- Weight
- 0.078 lb (35.38 g)
- Air Flow
- 6.2 CFM (0.174m³/min)
- Fan Type
- Tubeaxial
- Features
- Conformal Coating, Thermal Overload Protector (TOP)
- Approvals
- cUL, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- 7 ~ 13.2VDC
- Static Pressure
- 0.136 in H2O (33.9 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 38mm L x 38mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.050A
- Operating Temperature
- -
