Lanka Micro

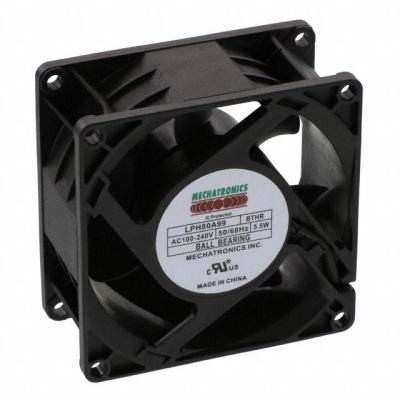

LPH80A99-BTHR
| Manufacturer: | Mechatronics Fan Group |
In Stock 130 pcs
|
|
|---|---|---|---|
| Datasheet: | LPH80A99-BTHR | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 80X38MM 100-240VAC | $21.07 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4000 RPM
- Noise
- 31.0 dB(A)
- Width
- 38.00mm
- Series
- LPH80A99
- Weight
- 0.359 lb (162.84 g)
- Air Flow
- 41.0 CFM (1.15m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, Electronic Commutation (EC)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 5.50W
- Voltage Range
- -
- Static Pressure
- 0.280 in H2O (70.0 Pa)
- Voltage - Rated
- 100 ~ 240VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.090A
- Operating Temperature
- -40 ~ 158°F (-40 ~ 70°C)
