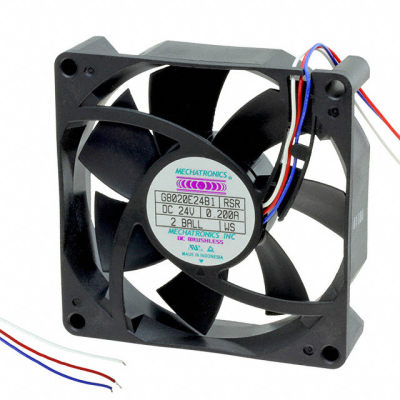

G8020E24B1-RSR-WS
| Manufacturer: | Mechatronics Fan Group |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | G8020E24B1-RSR-WS | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 80X20.8MM 24VDC WIRE | $13.84 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4000 RPM
- Noise
- 37.0 dB(A)
- Width
- 20.80mm
- Series
- G8020
- Weight
- 0.185 lb (83.91 g)
- Air Flow
- 49.0 CFM (1.37m³/min)
- Fan Type
- Tubeaxial
- Features
- Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- -
- Static Pressure
- 0.200 in H2O (49.8 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.200A
- Operating Temperature
- -
