Lanka Micro

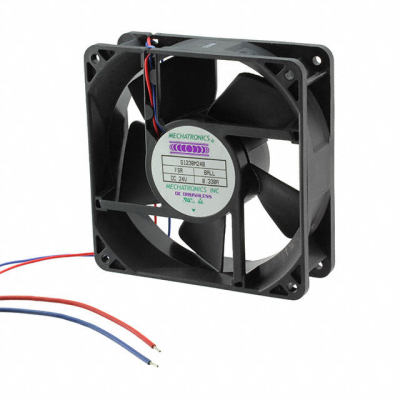

G1238M24B-FSR
| Manufacturer: | Mechatronics Fan Group |
In Stock 19 pcs
|
|
|---|---|---|---|
| Datasheet: | G1238M24B-FSR | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 120X38MM 24VDC | $14.94 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2800 RPM
- Noise
- 43.0 dB(A)
- Width
- 38.00mm
- Series
- G1238
- Weight
- 0.74 lb (335.66 g)
- Air Flow
- 125.0 CFM (3.50m³/min)
- Fan Type
- Tubeaxial
- Features
- Thermal Overload Protector (TOP)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- -
- Static Pressure
- 0.320 in H2O (79.7 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 119mm L x 119mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.330A
- Operating Temperature
- -
