G1238E12B-FSR-EM
| Manufacturer: | Mechatronics Fan Group |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | G1238E12B-FSR-EM | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |

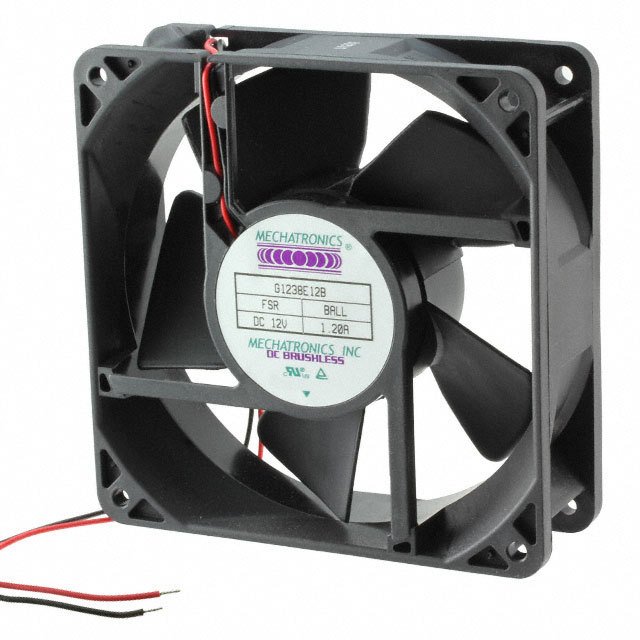

| Description: | FAN AXIAL 120X38MM IP57 12VDC | $16.13 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3600 RPM
- Noise
- 49.0 dB(A)
- Width
- 38.00mm
- Series
- G1238
- Weight
- 0.74 lb (335.66 g)
- Air Flow
- 158.0 CFM (4.42m³/min)
- Fan Type
- Tubeaxial
- Features
- Thermal Overload Protector (TOP)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- -
- Static Pressure
- 0.490 in H2O (122.1 Pa)
- Voltage - Rated
- 12VDC
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 119mm L x 119mm H
- Ingress Protection
- IP57 - Dust Protected, Waterproof
- Current Rating (Amps)
- 1.20A
- Operating Temperature
- -
