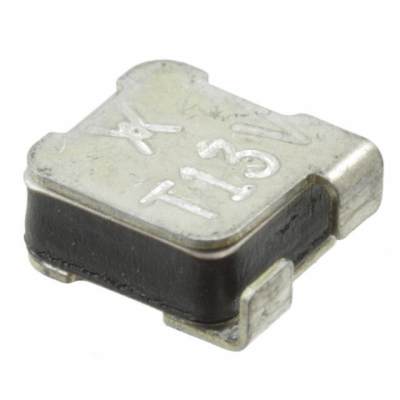

TSV250-130F-2
| Manufacturer: | Littelfuse Inc. |
In Stock 2440 pcs
|
|
|---|---|---|---|
| Datasheet: | TSV250-130F-2 | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 60V 130MA 2SMD | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- PolySwitch®, TS250
- Ratings
- -
- Approvals
- CSA, TUV, UL
- Packaging
- Digi-Reel®
- Part Status
- Active
- Lead Spacing
- -
- Time to Trip
- 2s
- Current - Max
- 3A
- Mounting Type
- Surface Mount
- Voltage - Max
- 60V (250V Int)
- Package / Case
- 2-SMD
- Thickness (Max)
- 0.126" (3.20mm)
- Size / Dimension
- 0.240" L x 0.272" W (6.10mm x 6.90mm)
- Current - Trip (It)
- 260mA
- Height - Seated (Max)
- -
- Operating Temperature
- -40°C ~ 85°C
- Current - Hold (Ih) (Max)
- 130mA
- Resistance - Initial (Ri) (Min)
- 4 Ohms
- Resistance - Post Trip (R1) (Max)
- 12 Ohms
