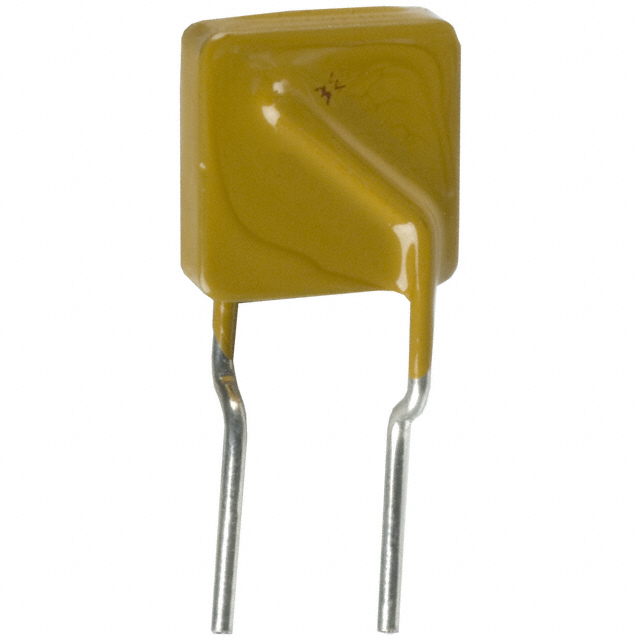

TR600-150

Product Parameter

Type

Polymeric

Series

PolySwitch®, TR600

Ratings

-

Approvals

CSA, UL

Packaging

Bulk

Part Status

Obsolete

Lead Spacing

0.197" (5.00mm)

Time to Trip

8s

Current - Max

3A

Mounting Type

Through Hole

Voltage - Max

60V (600V Int)

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.532" L x 0.236" W (13.50mm x 6.00mm)

Height - Seated (Max)

0.496" (12.60mm)

Operating Temperature

-

Current - Hold (Ih) (Max)

150mA

Resistance - Initial (Ri) (Min)

6 Ohms

Resistance - Post Trip (R1) (Max)

22 Ohms
