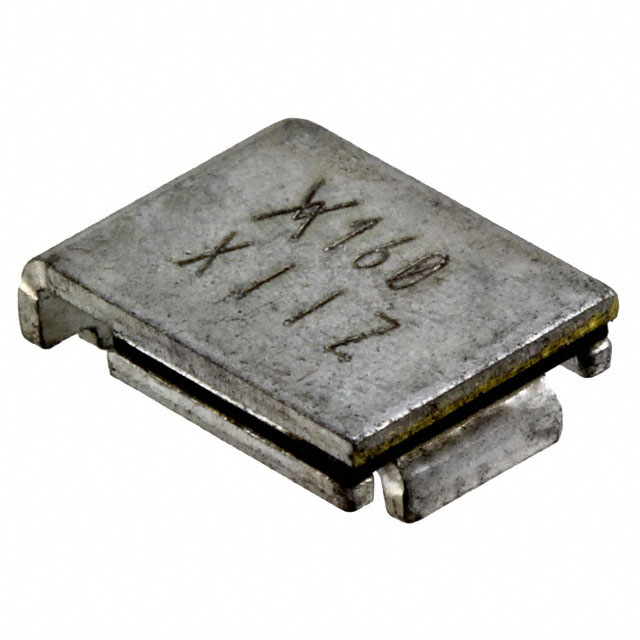

SMDH160-2

Product Parameter

Type

Polymeric

Series

PolySwitch®, SMD

Ratings

-

Approvals

CSA, TUV, UL

Packaging

Digi-Reel®

Part Status

Active

Lead Spacing

-

Time to Trip

15s

Current - Max

70A

Mounting Type

Surface Mount

Voltage - Max

16V

Package / Case

2-SMD

Thickness (Max)

0.118" (3.00mm)

Size / Dimension

0.343" L x 0.250" W (8.70mm x 6.36mm)

Current - Trip (It)

3.2A

Height - Seated (Max)

-

Operating Temperature

-40°C ~ 125°C

Current - Hold (Ih) (Max)

1.6A

Resistance - Initial (Ri) (Min)

50 mOhms

Resistance - Post Trip (R1) (Max)

150 mOhms
