RXE020

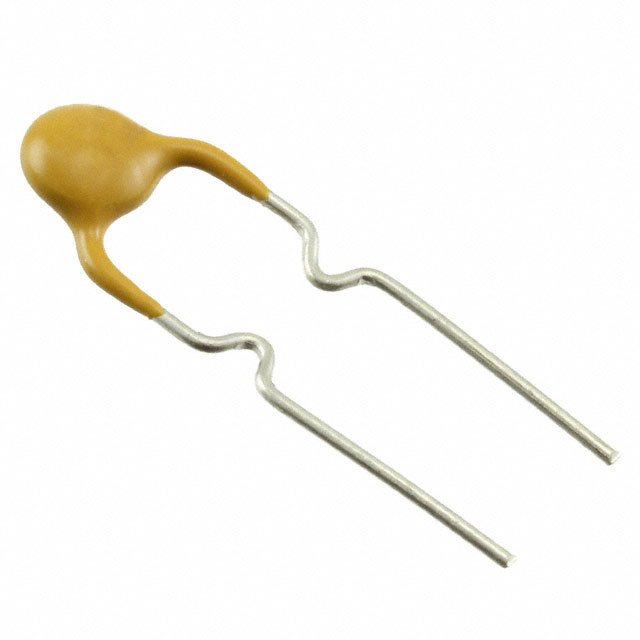

Images are for reference only. See Product Specifications for product details
thumb-0

RXE020

Manufacturer: Littelfuse Inc. In Stock 0 pcs

Datasheet: RXE020
Product Category: PTC Resettable Fuses Reference Price (In US Dollars) 1pcs
Description: PTC RESET FUSE 72V 200MA RADIAL Inquiry
Fill out the below form and we will contact you as soon as possible.

You May Also Be Interested In


RXE005


RXE010

no images

RXE010S


RXE017


RXE020


RXE020-2

Product Parameter

Type
Polymeric
Series
PolySwitch®, RXE
Ratings
-
Approvals
CSA, TUV, UL
Packaging
Bulk
Part Status
Obsolete
Lead Spacing
0.199" (5.05mm)
Time to Trip
2.2s
Current - Max
40A
Mounting Type
Through Hole
Voltage - Max
72V
Package / Case
Radial, Disc
Thickness (Max)
-
Size / Dimension
0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Current - Trip (It)
400mA
Height - Seated (Max)
0.461" (11.70mm)
Operating Temperature
-
Current - Hold (Ih) (Max)
200mA
Resistance - Initial (Ri) (Min)
1.83 Ohms
Resistance - Post Trip (R1) (Max)
4.4 Ohms
