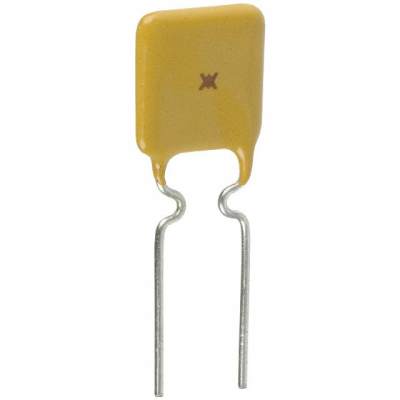

RUSBF135-AP
| Manufacturer: | Littelfuse Inc. |
In Stock 1536 pcs
|
|
|---|---|---|---|
| Datasheet: | RUSBF135-AP | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 16V 1.35A RADIAL | $0.6 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- PolySwitch®, RUSBF
- Ratings
- -
- Approvals
- CSA, TUV, UL
- Packaging
- Cut Tape (CT)
- Part Status
- Active
- Lead Spacing
- 0.199" (5.05mm)
- Time to Trip
- 4.5s
- Current - Max
- 40A
- Mounting Type
- Through Hole
- Voltage - Max
- 16V
- Package / Case
- Radial, Disc
- Thickness (Max)
- -
- Size / Dimension
- 0.350" L x 0.118" W (8.90mm x 3.00mm)
- Current - Trip (It)
- 2.7A
- Height - Seated (Max)
- 0.532" (13.50mm)
- Operating Temperature
- -40°C ~ 85°C
- Current - Hold (Ih) (Max)
- 1.35A
- Resistance - Initial (Ri) (Min)
- 40 mOhms
- Resistance - Post Trip (R1) (Max)
- 112 mOhms
