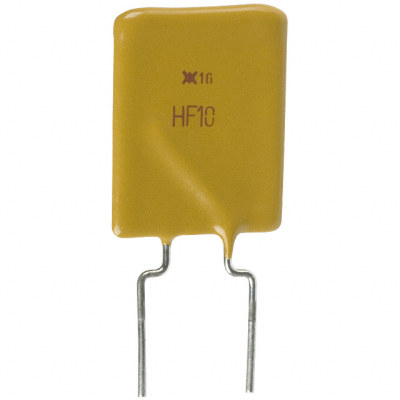

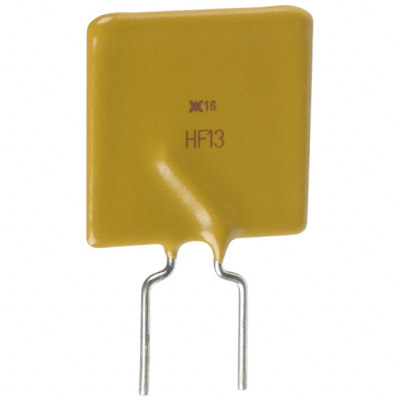

RHE1500

Product Parameter

Type

Polymeric

Series

PolySwitch®

Ratings

-

Approvals

-

Packaging

Bulk

Part Status

Obsolete

Lead Spacing

0.400" (10.15mm)

Time to Trip

20s

Current - Max

100A

Mounting Type

Through Hole

Voltage - Max

16V

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.925" L x 0.142" W (23.50mm x 3.60mm)

Current - Trip (It)

28A

Height - Seated (Max)

1.130" (28.70mm)

Operating Temperature

-

Current - Hold (Ih) (Max)

15A

Resistance - Initial (Ri) (Min)

3.2 mOhms
