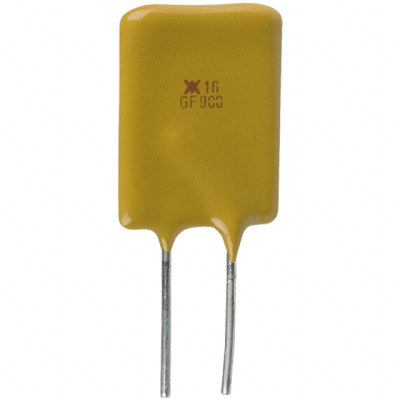

RGE900

Product Parameter

Type

Polymeric

Series

PolySwitch®

Ratings

-

Approvals

-

Packaging

Bulk

Part Status

Obsolete

Lead Spacing

0.199" (5.05mm)

Time to Trip

5.5s

Current - Max

100A

Mounting Type

Through Hole

Voltage - Max

16V

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.530" L x 0.100" W (13.50mm x 2.50mm)

Current - Trip (It)

15.3A

Height - Seated (Max)

0.854" (21.70mm)

Operating Temperature

-

Current - Hold (Ih) (Max)

9A

Resistance - Initial (Ri) (Min)

5 mOhms

Resistance - Post Trip (R1) (Max)

14 mOhms
