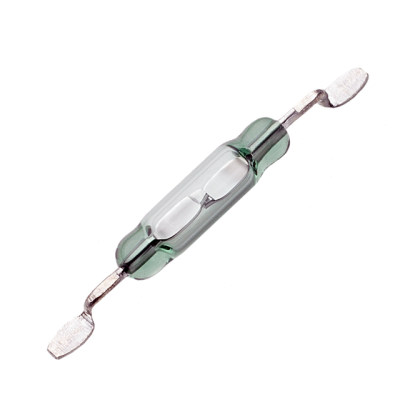

MISM-3V1R-8-12.5
| Manufacturer: | Littelfuse Inc. |
In Stock 4559 pcs
|
|
|---|---|---|---|
| Datasheet: | MISM-3V1R-8-12.5 | ||
| Product Category: | Magnetic, Reed Switches | Reference Price (In US Dollars) | 1pcs |
| Description: | SWITCH REED SPST-NO 180MA 120V | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Glass Body
- Series
- MISM-3V1
- Circuit
- SPST-NO
- Packaging
- Digi-Reel®
- Capacitance
- 0.3pF
- Part Status
- Active
- Size - Body
- 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
- Operate Time
- 0.45ms
- Release Time
- 0.2ms
- Mounting Type
- Surface Mount
- Operate Range
- 8 ~ 12AT
- Power - Rated
- 10W
- Release Range
- -
- Current - Carry
- 500mA (DC)
- Length - Overall
- 0.540" (13.72mm)
- Termination Style
- Gull Wing
- Height Above Board
- 0.090" (2.28mm)
- Current - Switching
- 180mA (AC), 250mA (DC)
- Operating Temperature
- -40°C ~ 125°C
- Voltage - Switching AC
- 120V
- Voltage - Switching DC
- 170V
