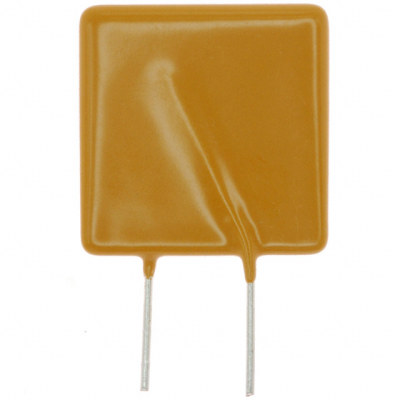

LVRL135S

Product Parameter

Type

Polymeric

Series

PolySwitch®, LVRL

Ratings

-

Approvals

CSA, TUV, UL

Packaging

Bulk

Part Status

Obsolete

Lead Spacing

0.200" (5.08mm)

Time to Trip

20s

Current - Max

13.5A

Mounting Type

Through Hole

Voltage - Max

120V (135V Int)

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.640" L x 0.160" W (16.30mm x 4.10mm)

Current - Trip (It)

2.7A

Height - Seated (Max)

0.854" (21.70mm)

Operating Temperature

-20°C ~ 85°C

Current - Hold (Ih) (Max)

1.35A

Resistance - Initial (Ri) (Min)

110 mOhms

Resistance - Post Trip (R1) (Max)

300 mOhms
