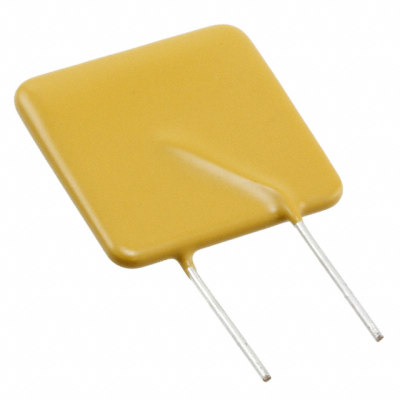

LVR200S
| Manufacturer: | Littelfuse Inc. |
In Stock 6934 pcs
|
|
|---|---|---|---|
| Datasheet: | LVR200S | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 240V 2A RADIAL | $3.21 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- PolySwitch®, LVR
- Ratings
- -
- Approvals
- CQC, CSA, TUV, UL
- Packaging
- Bulk
- Part Status
- Active
- Lead Spacing
- 0.400" (10.15mm)
- Time to Trip
- 28s
- Current - Max
- 20A
- Mounting Type
- Through Hole
- Voltage - Max
- 240V (265V Int)
- Package / Case
- Radial, Disc
- Thickness (Max)
- -
- Size / Dimension
- 0.980" L x 0.240" W (24.90mm x 6.10mm)
- Current - Trip (It)
- 4A
- Height - Seated (Max)
- 1.331" (33.80mm)
- Operating Temperature
- -20°C ~ 85°C
- Current - Hold (Ih) (Max)
- 2A
- Resistance - Initial (Ri) (Min)
- 89 mOhms
- Resistance - Post Trip (R1) (Max)
- 221 mOhms
