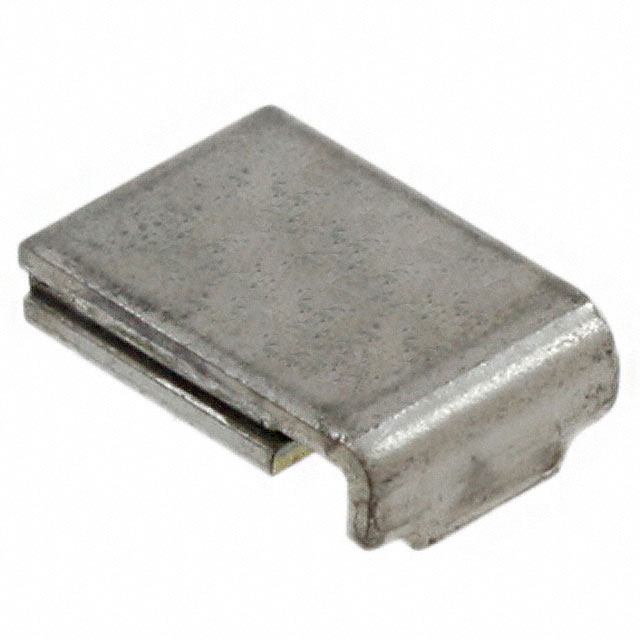

AHS120-2

Product Parameter

Type

Polymeric

Series

PolySwitch®, AHS

Ratings

AEC-Q200

Approvals

-

Packaging

Digi-Reel®

Part Status

Active

Lead Spacing

-

Time to Trip

2s

Current - Max

50A

Mounting Type

Surface Mount

Voltage - Max

16V

Package / Case

2-SMD

Thickness (Max)

0.118" (3.00mm)

Size / Dimension

0.290" L x 0.202" W (7.36mm x 5.12mm)

Current - Trip (It)

2.3A

Height - Seated (Max)

-

Operating Temperature

-40°C ~ 125°C

Current - Hold (Ih) (Max)

1.2A

Resistance - Initial (Ri) (Min)

150 mOhms

Resistance - Post Trip (R1) (Max)

340 mOhms
