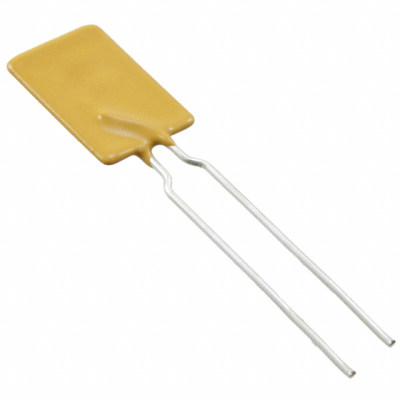

AHRF650-2

Product Parameter

Type

Polymeric

Series

PolySwitch®, AHRF

Ratings

AEC-Q200

Approvals

-

Packaging

Cut Tape (CT)

Part Status

Discontinued at Digi-Key

Lead Spacing

0.200" (5.08mm)

Time to Trip

7s

Current - Max

100A

Mounting Type

Through Hole

Voltage - Max

16V

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.500" L x 0.118" W (12.70mm x 3.00mm)

Current - Trip (It)

13.7A

Height - Seated (Max)

0.874" (22.20mm)

Operating Temperature

-40°C ~ 125°C

Current - Hold (Ih) (Max)

6.5A

Resistance - Initial (Ri) (Min)

9 mOhms

Resistance - Post Trip (R1) (Max)

26 mOhms
