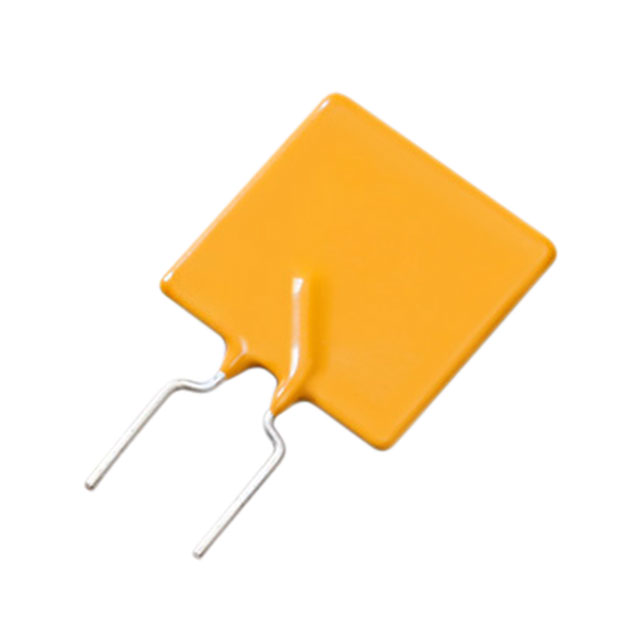

AHRF1100
| Manufacturer: | Littelfuse Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | AHRF1100 | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 16V 11A RADIAL | $0.84 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- PolySwitch®, AHRF
- Ratings
- AEC-Q200
- Approvals
- -
- Packaging
- Bulk
- Part Status
- Active
- Lead Spacing
- 0.400" (10.15mm)
- Time to Trip
- 11s
- Current - Max
- 100A
- Mounting Type
- Through Hole
- Voltage - Max
- 16V
- Package / Case
- Radial, Disc
- Thickness (Max)
- -
- Size / Dimension
- 0.827" L x 0.118" W (21.00mm x 3.00mm)
- Current - Trip (It)
- 21.2A
- Height - Seated (Max)
- 1.028" (26.10mm)
- Operating Temperature
- -40°C ~ 125°C
- Current - Hold (Ih) (Max)
- 11A
- Resistance - Initial (Ri) (Min)
- 4.8 mOhms
- Resistance - Post Trip (R1) (Max)
- 13 mOhms
