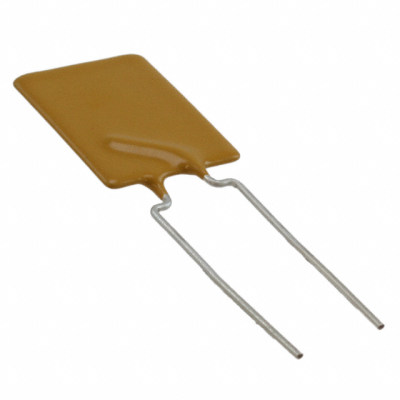

AHR1000

Product Parameter

Type

Polymeric

Series

PolySwitch®, AHR

Ratings

AEC-Q200

Approvals

-

Packaging

Bulk

Part Status

Obsolete

Lead Spacing

0.400" (10.15mm)

Time to Trip

10.5s

Current - Max

100A

Mounting Type

Through Hole

Voltage - Max

16V

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.689" L x 0.118" W (17.50mm x 3.00mm)

Current - Trip (It)

20.5A

Height - Seated (Max)

1.043" (26.50mm)

Operating Temperature

-40°C ~ 125°C

Current - Hold (Ih) (Max)

10A

Resistance - Initial (Ri) (Min)

5.1 mOhms

Resistance - Post Trip (R1) (Max)

10.5 mOhms
