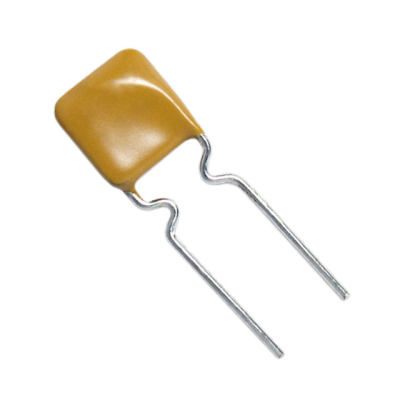

AHEF070
| Manufacturer: | Littelfuse Inc. |
In Stock 521 pcs
|
|
|---|---|---|---|
| Datasheet: | AHEF070 | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 32V 700MA RADIAL | $0.72 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- PolySwitch®, AHEF
- Ratings
- AEC-Q200
- Approvals
- -
- Packaging
- Bulk
- Part Status
- Active
- Lead Spacing
- 0.118" (3.00mm)
- Time to Trip
- 3.2s
- Current - Max
- 100A
- Mounting Type
- Through Hole
- Voltage - Max
- 32V
- Package / Case
- Radial, Disc
- Thickness (Max)
- -
- Size / Dimension
- 0.272" L x 0.118" W (6.90mm x 3.00mm)
- Current - Trip (It)
- 1.4A
- Height - Seated (Max)
- 0.425" (10.80mm)
- Operating Temperature
- -40°C ~ 125°C
- Current - Hold (Ih) (Max)
- 700mA
- Resistance - Initial (Ri) (Min)
- 230 mOhms
- Resistance - Post Trip (R1) (Max)
- 800 mOhms
