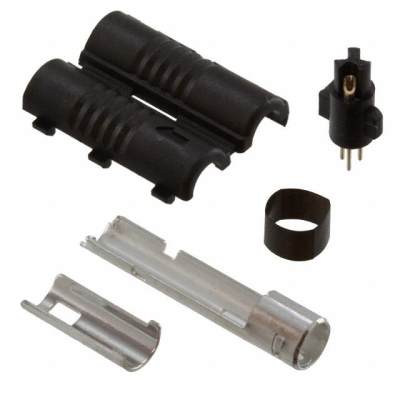

SR38-4P-3P(71)
| Manufacturer: | Hirose Electric Co Ltd |
In Stock 167 pcs
|
|
|---|---|---|---|
| Datasheet: | SR38-4P-3P(71) | ||
| Product Category: | Circular Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN PLUG MALE 3POS SILVER SLDR | $16.28 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Black, Silver
- Series
- SR38
- Features
- Backshell
- Packaging
- Bulk
- Shielding
- Shielded
- Orientation
- Keyed
- Part Status
- Obsolete
- Termination
- Solder Cup
- Applications
- -
- Shell Finish
- Tin
- Cable Opening
- -
- Mounting Type
- Free Hanging (In-Line)
- Connector Type
- Plug, Male Pins
- Fastening Type
- Snap-In
- Shell Material
- Brass
- Voltage Rating
- 30VAC, 42VDC
- Insert Material
- Polybutylene Terephthalate (PBT)
- Shell Size, MIL
- -
- Contact Material
- Phosphor Bronze
- Mounting Feature
- -
- Ingress Protection
- -
- Number of Positions
- 3
- Shell Size - Insert
- 4
- Current Rating (Amps)
- 0.5A
- Operating Temperature
- -15°C ~ 60°C
- Contact Finish - Mating
- Silver
- Backshell Material, Plating
- Polypropylene (PP)
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Mating
- 78.7µin (2.00µm)
