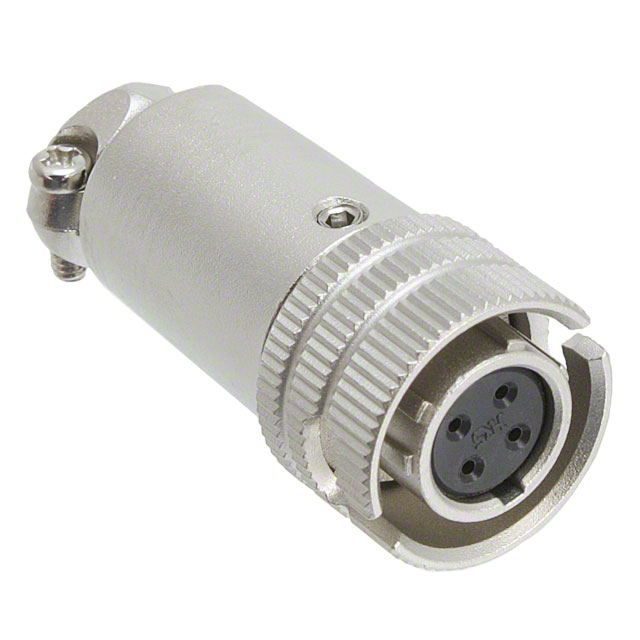

HR11-9BP-4S(73)
| Manufacturer: | Hirose Electric Co Ltd |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | HR11-9BP-4S(73) | ||
| Product Category: | Circular Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN PLUG FMALE 4POS SOLDER | $16.26 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Silver
- Series
- HR11
- Features
- Backshell, Cable Clamp, Coupling Nut
- Packaging
- Bulk
- Shielding
- Unshielded
- Orientation
- Keyed
- Part Status
- Active
- Termination
- Solder Cup
- Applications
- Communication Systems, Instrumentation
- Shell Finish
- Nickel
- Cable Opening
- 0.177" ~ 0.217" (4.50mm ~ 5.50mm)
- Mounting Type
- Free Hanging (In-Line)
- Connector Type
- Plug, Female Sockets
- Fastening Type
- Bayonet Lock
- Shell Material
- Zinc Alloy
- Voltage Rating
- 100VAC, 140VDC
- Insert Material
- Polyamide (PA), Nylon
- Shell Size, MIL
- -
- Contact Material
- Phosphor Bronze
- Mounting Feature
- -
- Ingress Protection
- -
- Number of Positions
- 4
- Shell Size - Insert
- 9
- Current Rating (Amps)
- 2A
- Operating Temperature
- -10°C ~ 60°C
- Contact Finish - Mating
- Silver
- Backshell Material, Plating
- Brass, Nickel
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Mating
- 118.1µin (3.00µm)
