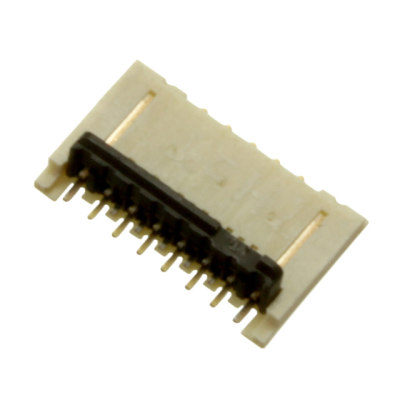

FH64MA-11S-0.25SHW(99)
| Manufacturer: | Hirose Electric Co Ltd |
In Stock 500 pcs
|
|
|---|---|---|---|
| Datasheet: | FH64MA-11S-0.25SHW(99) | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |

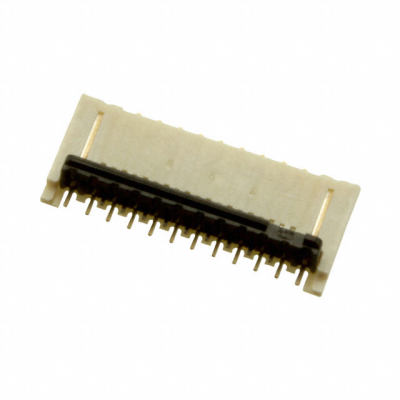

| Description: | CONN FPC 0.25MM SMD R/A 11POS | $2.14 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.010" (0.25mm)
- Series
- FH64MA
- Features
- -
- Packaging
- Tape & Reel (TR)
- Part Status
- Active
- Termination
- Solder
- Housing Color
- Beige
- Mating Cycles
- 10
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Black
- Cable End Type
- Notched
- Contact Finish
- Gold
- Flat Flex Type
- FPC
- Voltage Rating
- 30V
- Locking Feature
- Flip Lock, Backlock
- Contact Material
- Phosphor Bronze
- Actuator Material
- Polyamide (PA), Nylon
- FFC, FCB Thickness
- 0.12mm
- Height Above Board
- 0.020" (0.50mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Number of Positions
- 11
- Current Rating (Amps)
- 0.2A
- Operating Temperature
- -55°C ~ 85°C
- Connector/Contact Type
- Contacts, Top
- Contact Finish Thickness
- 1.18µin (0.030µm)
- Material Flammability Rating
- UL94 V-0
