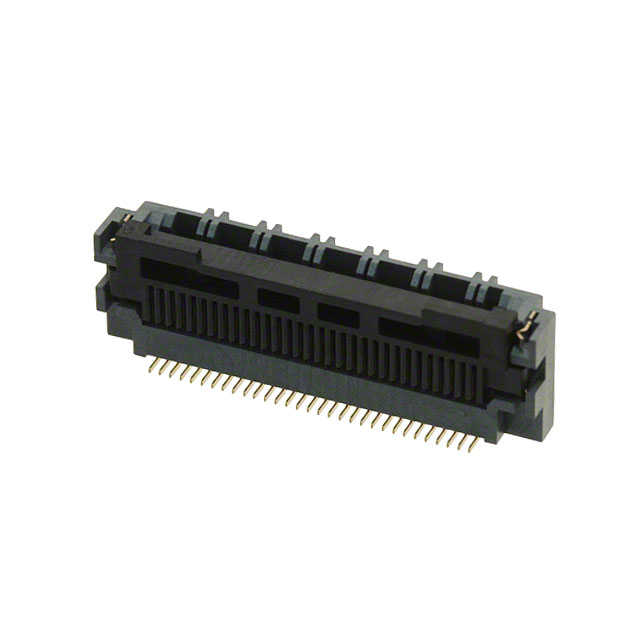

FH48-31S-0.5SV
| Manufacturer: | Hirose Electric Co Ltd |
In Stock 2911 pcs
|
|
|---|---|---|---|
| Datasheet: | FH48-31S-0.5SV | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FFC VERT 31POS 0.50MM SMD | $3.14 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.020" (0.50mm)
- Series
- FH48
- Features
- Low Insertion Force (LIF)
- Packaging
- Cut Tape (CT)
- Part Status
- Active
- Termination
- Solder
- Housing Color
- Gray
- Mating Cycles
- -
- Mounting Type
- Surface Mount
- Actuator Color
- Black
- Cable End Type
- Tabbed
- Contact Finish
- -
- Flat Flex Type
- FFC
- Voltage Rating
- 50V
- Locking Feature
- Flip Lock
- Contact Material
- Phosphor Bronze
- Actuator Material
- Liquid Crystal Polymer (LCP), Halogen Free
- FFC, FCB Thickness
- 0.30mm
- Height Above Board
- 0.243" (6.18mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Number of Positions
- 31
- Current Rating (Amps)
- 0.5A
- Operating Temperature
- -40°C ~ 85°C
- Connector/Contact Type
- Contacts, Vertical - 1 Sided
- Contact Finish Thickness
- -
- Material Flammability Rating
- UL94 V-0
