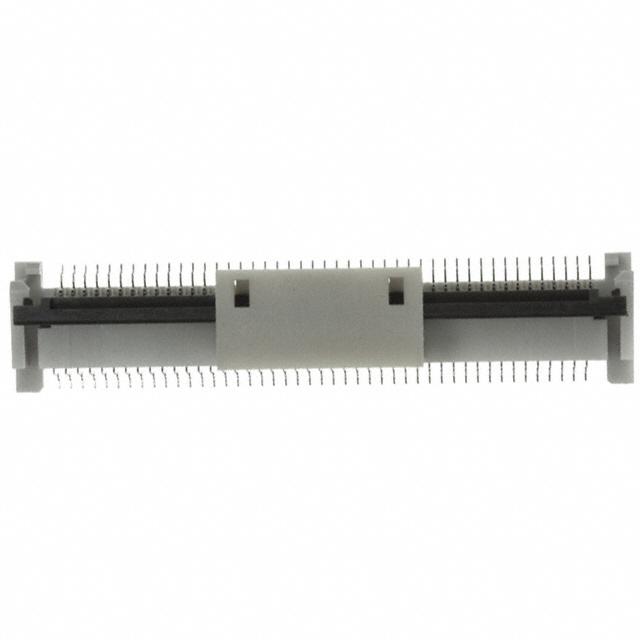

FH16-90S-0.3SHW
| Manufacturer: | Hirose Electric Co Ltd |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | FH16-90S-0.3SHW | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FPC BOTTOM 90POS 0.30MM R/A | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.012" (0.30mm)
- Series
- FH16
- Features
- Pick and Place Cap, Zero Insertion Force (ZIF)
- Packaging
- Cut Tape (CT)
- Part Status
- Obsolete
- Termination
- Solder
- Housing Color
- Beige
- Mating Cycles
- 20
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Brown
- Cable End Type
- Tabbed
- Contact Finish
- Tin-Lead
- Flat Flex Type
- FPC
- Voltage Rating
- 30V
- Locking Feature
- Flip Lock
- Contact Material
- Phosphor Bronze
- Actuator Material
- Polyphenylene Sulfide (PPS)
- FFC, FCB Thickness
- 0.30mm
- Height Above Board
- 0.118" (3.00mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP), Polyamide (PA), Nylon
- Number of Positions
- 90
- Current Rating (Amps)
- 0.15A
- Operating Temperature
- -40°C ~ 70°C
- Connector/Contact Type
- Contacts, Bottom
- Contact Finish Thickness
- -
- Material Flammability Rating
- UL94 V-0
