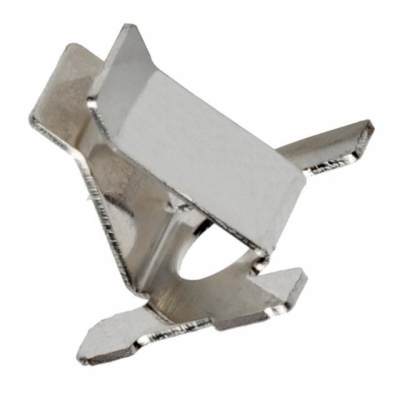

S9101-46R

Product Parameter

Series

EZ-Board

Features

-

Packaging

Digi-Reel®

Tail Type

Clip

Part Status

Active

Termination

Surface Mount

Socket Depth

0.138" (3.51mm)

Tail Diameter

-

Contact Finish

Tin

Board Thickness

-

Flange Diameter

-

Insertion Force

2.80N ~ 4.50N

Contact Material

Phosphor Bronze

Length - Overall

0.177" (4.50mm)

Pin Hole Diameter

0.079" (2.00mm)

Accepts Pin Diameter

0.043" ~ 0.071" (1.10mm ~ 1.80mm)

Operating Temperature

-40°C ~ 105°C

Mounting Hole Diameter

0.158" (4.01mm)

Accepts Square Pin Size

0.043" ~ 0.055" (1.10mm ~ 1.40mm)

Contact Finish Thickness

157.5µin (4.00µm)
