Lanka Micro

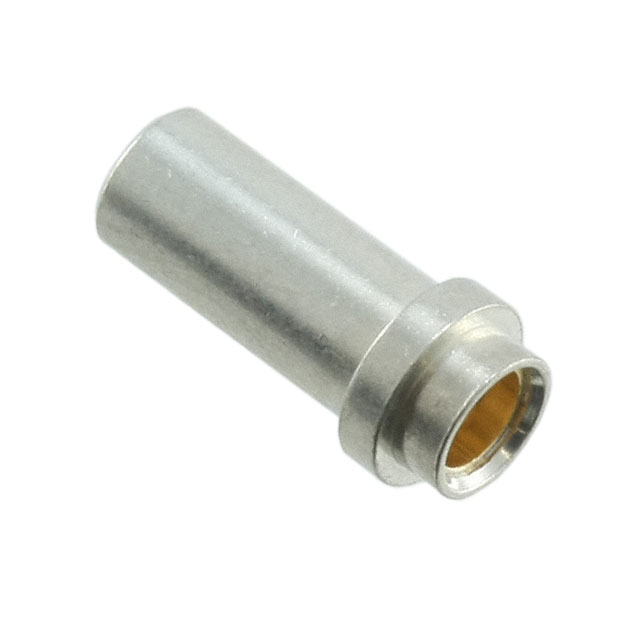

H3490-01
| Manufacturer: | Harwin Inc. |
In Stock 22283 pcs
|
|
|---|---|---|---|
| Datasheet: | H3490-01 | ||
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN PIN RCPT .079 SOLDER | $1.22 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- -
- Features
- -
- Packaging
- Bulk
- Tail Type
- No Tail
- Part Status
- Active
- Termination
- Solder
- Socket Depth
- 0.161" (4.09mm)
- Tail Diameter
- -
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- 0.187" (4.75mm)
- Insertion Force
- 2.99N ~ 6.00N
- Contact Material
- Beryllium Copper
- Length - Overall
- 0.417" (10.59mm)
- Pin Hole Diameter
- -
- Accepts Pin Diameter
- 0.079" ~ 0.091" (2.00mm ~ 2.30mm)
- Operating Temperature
- -55°C ~ 125°C
- Mounting Hole Diameter
- 0.144" ~ 0.148" (3.66mm ~ 3.77mm)
- Accepts Square Pin Size
- -
- Contact Finish Thickness
- 3.94µin (0.10µm)
