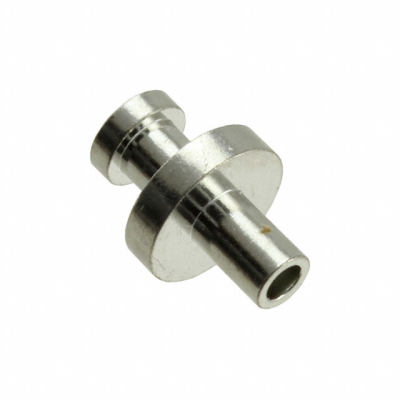

H2061-01
| Manufacturer: | Harwin Inc. |
In Stock 671 pcs
|
|
|---|---|---|---|
| Datasheet: | H2061-01 | ||
| Product Category: | Terminals - Turret Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | TERM TURRET SINGLE L=3.18MM TIN | $0.44 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- -
- Insulation
- Non-Insulated
- Part Status
- Active
- Termination
- Swage
- Mounting Type
- Through Hole
- Terminal Type
- Single End
- Contact Finish
- Tin
- Board Thickness
- 0.063" (1.60mm)
- Flange Diameter
- 0.156" ~ 0.161" (3.96mm ~ 4.09mm)
- Staking Side ID
- -
- Staking Side OD
- 0.059" ~ 0.063" (1.50mm ~ 1.59mm)
- Contact Material
- Brass Alloy
- Insulation Color
- -
- Length - Overall
- 0.219" (5.56mm)
- Number of Turrets
- Single
- Length - Above Board
- 0.125" (3.18mm)
- Length - Below Flange
- 0.094" ~ 0.099" (2.39mm ~ 2.51mm)
- Material - Insulation
- -
- Diameter - Turret Head
- 0.089" ~ 0.094" (2.26mm ~ 2.39mm)
- Mounting Hole Diameter
- 0.063" ~ 0.066" (1.60mm ~ 1.68mm)
- Contact Finish Thickness
- -
