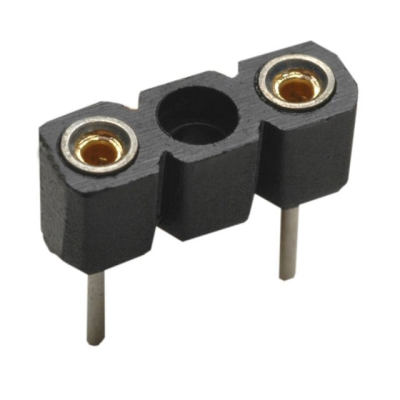

D2899-42
| Manufacturer: | Harwin Inc. |
In Stock 1762 pcs
|
|
|---|---|---|---|
| Datasheet: | D2899-42 | ||
| Product Category: | Sockets for ICs, Transistors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN IC DIP SOCKET 3POS GOLD | $1.46 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- DIP, 0.3" (7.62mm) Row Spacing
- Series
- D2
- Features
- Closed Frame
- Packaging
- Bulk
- Part Status
- Active
- Termination
- Solder
- Pitch - Post
- 0.200" (5.08mm)
- Mounting Type
- Through Hole
- Pitch - Mating
- 0.200" (5.08mm)
- Contact Resistance
- 15mOhm
- Dielectric Material
- Polyamide (PA), Nylon, Glass Filled
- Contact Finish - Post
- Tin
- Current Rating (Amps)
- 1.5A
- Operating Temperature
- -55°C ~ 125°C
- Contact Finish - Mating
- Gold
- Contact Material - Post
- Brass
- Termination Post Length
- 0.118" (3.00mm)
- Contact Material - Mating
- Beryllium Copper
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- 196.9µin (5.00µm)
- Contact Finish Thickness - Mating
- Flash
- Number of Positions or Pins (Grid)
- 3 (1 x 3), 2 Loaded
