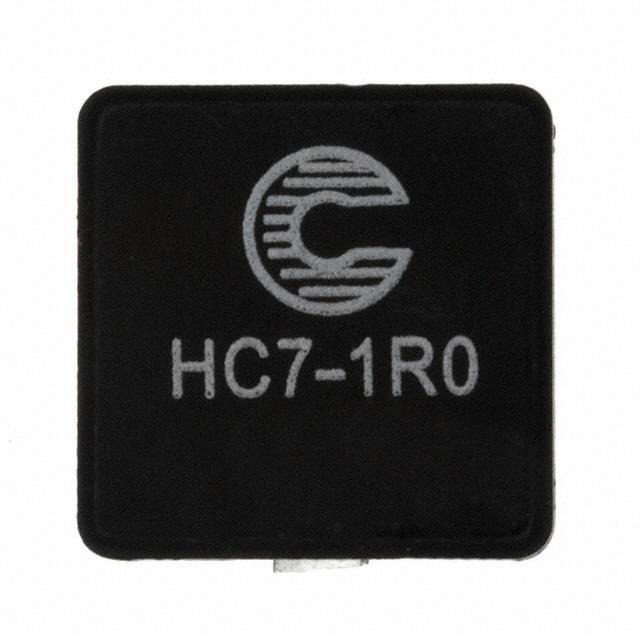

HC7-1R0-R

Product Parameter

Type

Wirewound

Series

HC7

Ratings

-

Q @ Freq

-

Packaging

Digi-Reel®

Shielding

Unshielded

Tolerance

±20%

Inductance

1µH

Part Status

Discontinued at Digi-Key

Mounting Type

Surface Mount

Package / Case

Nonstandard

Material - Core

Iron Powder

Size / Dimension

0.543" L x 0.512" W (13.80mm x 13.00mm)

DC Resistance (DCR)

2.1mOhm Max

Current - Saturation

37.1A

Current Rating (Amps)

20.3A

Height - Seated (Max)

0.217" (5.50mm)

Operating Temperature

-40°C ~ 155°C

Supplier Device Package

-

Frequency - Self Resonant

-

Inductance Frequency - Test

100kHz
