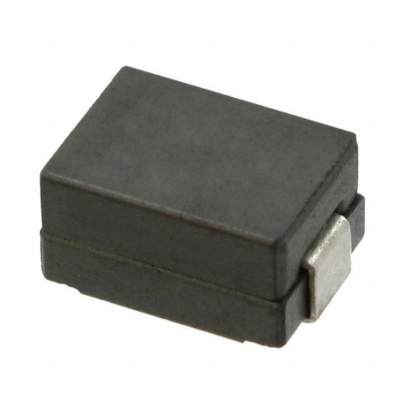

FP4-200-R

Product Parameter

Type

Wirewound

Series

FLAT-PAC 4

Ratings

-

Q @ Freq

-

Packaging

Digi-Reel®

Shielding

Unshielded

Tolerance

±15%

Inductance

200nH

Part Status

Active

Mounting Type

Surface Mount

Package / Case

Nonstandard

Material - Core

Ferrite

Size / Dimension

0.402" L x 0.268" W (10.20mm x 6.80mm)

DC Resistance (DCR)

0.65mOhm Max

Current - Saturation

30A

Current Rating (Amps)

40A

Height - Seated (Max)

0.197" (5.00mm)

Operating Temperature

-40°C ~ 155°C

Supplier Device Package

-

Frequency - Self Resonant

-

Inductance Frequency - Test

1MHz
