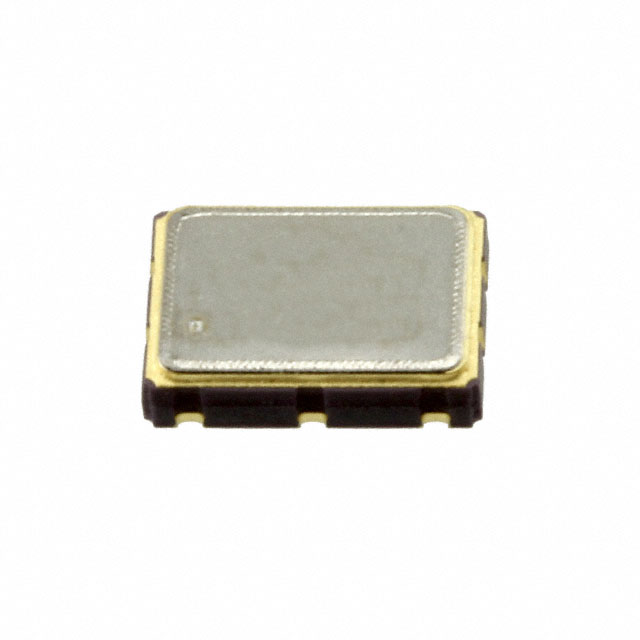

SHA000001

Product Parameter

Type

XO (Standard)

Output

HCSL

Series

SaRonix-eCera™ SH

Ratings

-

Function

Enable/Disable

Frequency

100MHz

Packaging

Digi-Reel®

Part Status

Active

Mounting Type

Surface Mount

Base Resonator

Crystal

Package / Case

6-SMD, No Lead

Size / Dimension

0.276" L x 0.197" W (7.00mm x 5.00mm)

Voltage - Supply

3.3V

Frequency Stability

±50ppm

Height - Seated (Max)

0.079" (2.00mm)

Operating Temperature

-40°C ~ 85°C

Current - Supply (Max)

40mA

Absolute Pull Range (APR)

-

Current - Supply (Disable) (Max)

15mA
