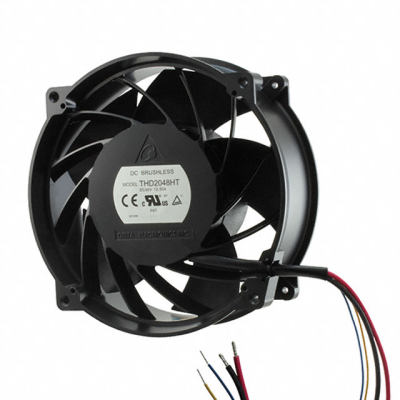

THD2048HT
| Manufacturer: | Delta Electronics |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | THD2048HT | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 200X70MM 48VDC WIRE | $250.11 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 7400 RPM
- Noise
- 78.0 dB(A)
- Width
- 70.00mm
- Series
- THD
- Air Flow
- 1026.8 CFM (28.75m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Approvals
- CE, cURus, TUV
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 384.0W
- Voltage Range
- 36 ~ 75VDC
- Static Pressure
- 4.945 in H2O (1232.2 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 200mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 8.00A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
