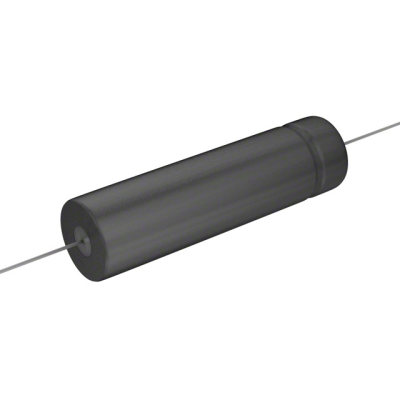

TC69

Product Parameter

Series

TC

Ratings

-

Packaging

Bulk

Tolerance

-10%, +50%

Capacitance

100µF

Part Status

Obsolete

Applications

General Purpose

Lead Spacing

-

Polarization

Polar

Mounting Type

Through Hole

Package / Case

Axial, Can

Voltage - Rated

350V

Lifetime @ Temp.

1000 Hrs @ 85°C

Size / Dimension

0.875" Dia x 2.625" L (22.22mm x 66.68mm)

Height - Seated (Max)

-

Operating Temperature

-40°C ~ 85°C

Surface Mount Land Size

-

Ripple Current @ Low Frequency

1.093A @ 120Hz

Ripple Current @ High Frequency

1.37A @ 2.4kHz

ESR (Equivalent Series Resistance)

1.35Ohm @ 120Hz
