CG742U050U4C
| Manufacturer: | Cornell Dubilier Electronics (CDE) |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | CG742U050U4C | ||
| Product Category: | Aluminum Electrolytic Capacitors | Reference Price (In US Dollars) | 1pcs |

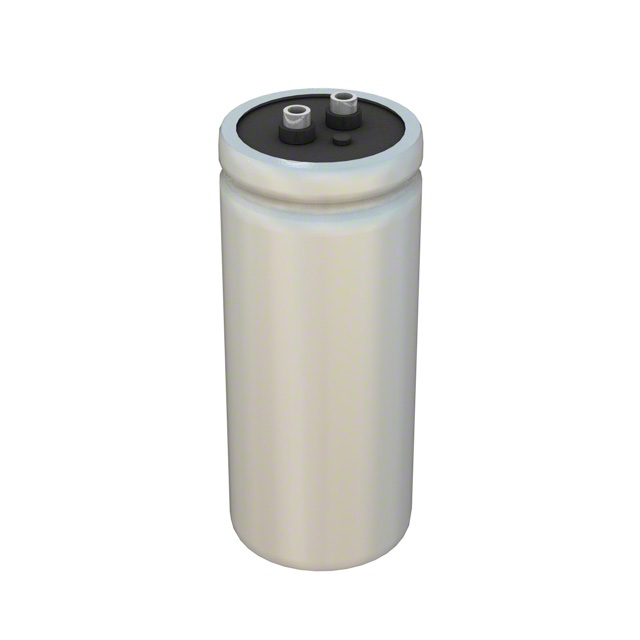

| Description: | CAP ALUM 7400UF 50V SCREW | $31.12 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- CG
- Ratings
- -
- Packaging
- Bulk
- Tolerance
- -10%, +75%
- Capacitance
- 7400µF
- Part Status
- Active
- Applications
- General Purpose
- Lead Spacing
- -
- Polarization
- Polar
- Mounting Type
- Chassis Mount
- Package / Case
- Radial, Can - Screw Terminals
- Voltage - Rated
- 50V
- Lifetime @ Temp.
- 2000 Hrs @ 85°C
- Size / Dimension
- 1.750" Dia (44.45mm)
- Height - Seated (Max)
- 4.125" (104.78mm)
- Operating Temperature
- -40°C ~ 85°C
- Surface Mount Land Size
- -
- Ripple Current @ Low Frequency
- 8.7A @ 120Hz
- Ripple Current @ High Frequency
- 10.005A @ 10kHz
- ESR (Equivalent Series Resistance)
- 22mOhm @ 120Hz
