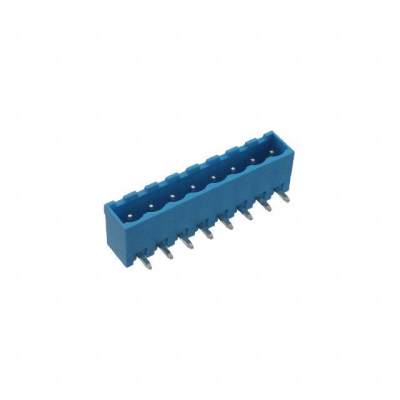

TBP01R1-508-08BE
| Manufacturer: | CUI, Inc. |
In Stock 497 pcs
|
|
|---|---|---|---|
| Datasheet: | TBP01R1-508-08BE | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | TERMINAL BLOCK, PLUGGABLE, 5.08, | $1.02 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Header, Male Pins, Shrouded (4 Side)
- Color
- Blue
- Pitch
- 0.200" (5.08mm)
- Series
- TBP01R1-508
- Features
- -
- Packaging
- Bulk
- Screw Size
- -
- Part Status
- Active
- Current - UL
- 16A
- Voltage - UL
- 300V
- Current - IEC
- 20A
- Mounting Type
- Through Hole
- Voltage - IEC
- 320V
- Torque - Screw
- -
- Plug Wire Entry
- -
- Contact Material
- Copper Alloy
- Number of Levels
- 1
- Insulation Height
- 0.335" (8.51mm)
- Termination Style
- Solder
- Wire Strip Length
- -
- Header Orientation
- 90°, Right Angle
- Ingress Protection
- -
- Contact Tail Length
- 0.157" (4.00mm)
- Dielectric Material
- Polyamide (PA66), Nylon 6/6
- Number of Positions
- 8
- Positions Per Level
- 8
- Contact Mating Finish
- Tin
- Operating Temperature
- -40°C ~ 105°C
- Wire Gauge or Range - AWG
- -
- Wire Gauge or Range - mm²
- -
- Material Flammability Rating
- UL94 V-0
