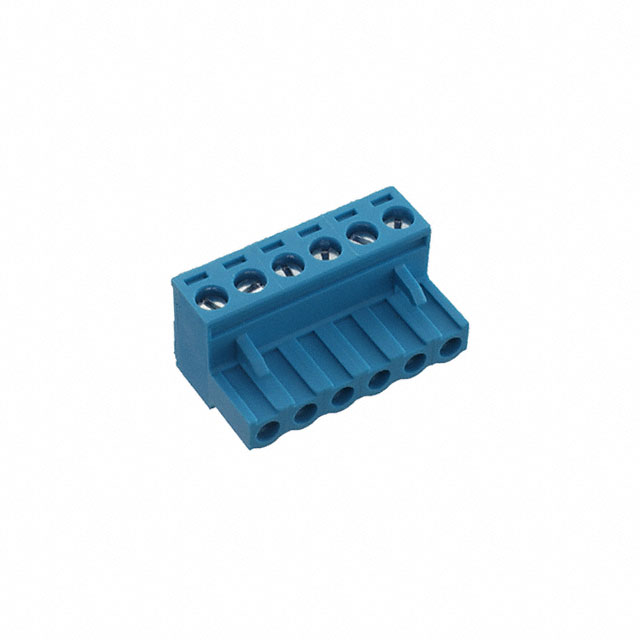

TBP01P1-508-06BE
| Manufacturer: | CUI, Inc. |
In Stock 599 pcs
|
|
|---|---|---|---|
| Datasheet: | TBP01P1-508-06BE | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | TERMINAL BLOCK, PLUGGABLE, 5.08 | $1.56 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug, Female Sockets
- Color
- Blue
- Pitch
- 0.200" (5.08mm)
- Series
- TBP01P1-508
- Features
- Retention Latches (Non-Wire Side)
- Packaging
- Bulk
- Screw Size
- M3
- Part Status
- Active
- Current - UL
- 16A
- Voltage - UL
- 300V
- Current - IEC
- 20A
- Mounting Type
- Free Hanging (In-Line)
- Voltage - IEC
- 320V
- Torque - Screw
- 0.5 Nm (4.4 Lb-In)
- Plug Wire Entry
- 180°
- Contact Material
- Copper Alloy
- Number of Levels
- 1
- Insulation Height
- 0.591" (15.00mm)
- Termination Style
- Screw - Rising Cage Clamp
- Wire Strip Length
- 7mm
- Header Orientation
- -
- Ingress Protection
- -
- Contact Tail Length
- -
- Dielectric Material
- Polyamide (PA66), Nylon 6/6
- Number of Positions
- 6
- Positions Per Level
- 6
- Contact Mating Finish
- Nickel
- Operating Temperature
- -40°C ~ 105°C
- Wire Gauge or Range - AWG
- 12-28 AWG
- Wire Gauge or Range - mm²
- 2.5mm²
- Material Flammability Rating
- UL94 V-0
