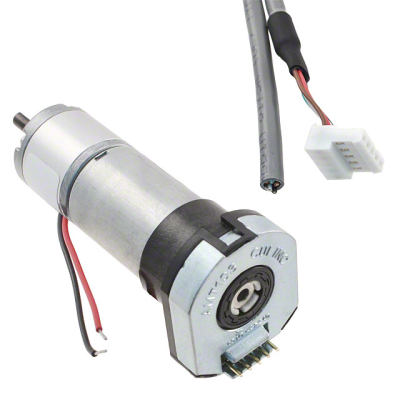

M223X0003

Product Parameter

RPM

8400 RPM

Type

DC Motor

Series

M223X000X

Weight

-

Features

-

Function

Servomotor

Approvals

-

Motor Type

Brushed

Part Status

Obsolete

Encoder Type

Incremental

Power - Rated

4.65W

Voltage - Rated

12VDC

Diameter - Shaft

0.157" (4.00mm)

Size / Dimension

Round - 0.866" Dia (22.00mm)

Termination Style

Wire Leads

Gear Reduction Ratio

84

Mounting Hole Spacing

0.709" (18.00mm)

Operating Temperature

-10°C ~ 50°C

Length - Shaft and Bearing

0.543" (13.80mm)

Torque - Rated (oz-in / mNm)

3.10 / 21.92

Torque - Max Momentary (oz-in / mNm)

-
