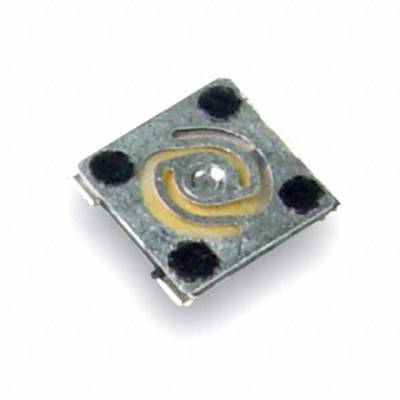

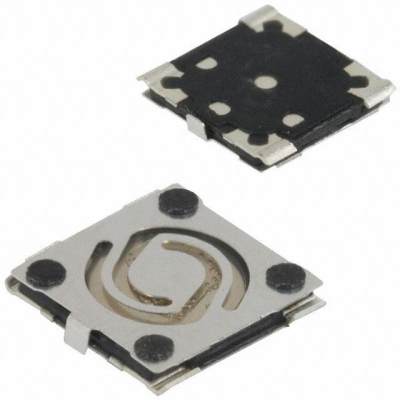

KMX223G

Product Parameter

Series

KMX

Circuit

SPST-NO

Outline

4.10mm x 4.10mm

Features

Tactile Feedback

Packaging

Digi-Reel®

Part Status

Obsolete

Illumination

Non-Illuminated

Actuator Type

Flush

Mounting Type

Surface Mount

Switch Travel

0.20mm

Mechanical Life

250,000 Cycles

Operating Force

220gf

Switch Function

Off-Mom

Actuator Material

-

Termination Style

Gull Wing

Ingress Protection

-

Actuator Orientation

Top Actuated

Operating Temperature

-40°C ~ 125°C

Contact Rating @ Voltage

0.02A @ 32VDC

Illumination Type, Color

-

Actuator Length, Right Angle

-

Illumination Voltage (Nominal)

-

Actuator Height off PCB, Vertical

0.58mm
