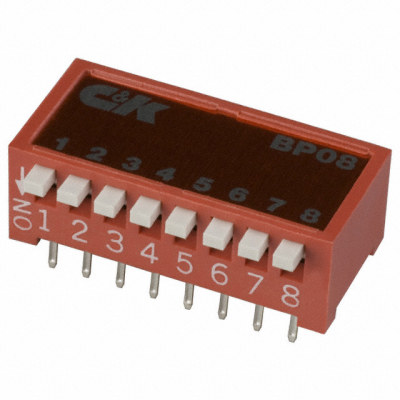

BP08KE

Product Parameter

Pitch

0.100" (2.54mm), Full

Length

0.906" (23.00mm)

Series

BP

Circuit

SPST

Features

Epoxy Sealed Terminals

Washable

No

Packaging

Tube

Part Status

Obsolete

Actuator Type

Slide (Standard)

Body Material

Polyester (PET), Glass Filled

Mounting Type

Through Hole, Right Angle

Actuator Level

Raised

Contact Finish

Gold

Voltage Rating

5VDC

Electrical Life

2,000 Cycles

Mechanical Life

2,000 Cycles

Contact Material

Phosphor Bronze

Termination Style

PC Pin

Height Above Board

0.315" (8.00mm)

Number of Positions

8

Current Rating (Amps)

100mA

Operating Temperature

-20°C ~ 60°C
