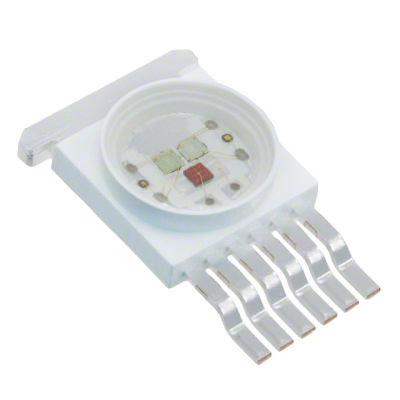

ASMT-MT00-00001
| Manufacturer: | Broadcom Limited |
In Stock 468 pcs
|
|
|---|---|---|---|
| Datasheet: | ASMT-MT00-00001 | ||
| Product Category: | LED Lighting - Color | Reference Price (In US Dollars) | 1pcs |
| Description: | PWR LED SOURCE 3W RGB TRICOLOR | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Red, Green, Blue (RGB)
- Series
- Moonstone™
- Packaging
- Digi-Reel®
- Wavelength
- 625nm Red, 525nm Green, 460nm Blue
- Part Status
- Active
- Current - Max
- 350mA Red, 350mA Green, 350mA Blue
- Mounting Type
- Surface Mount
- Viewing Angle
- 120°
- Current - Test
- 350mA Red, 350mA Green, 350mA Blue
- Package / Case
- TO-252-3, DPak (2 Leads + Tab), SC-63
- Base Part Number
- ASMT-M*00
- Size / Dimension
- 0.335" L x 0.335" W (8.50mm x 8.50mm)
- Temperature - Test
- 25°C
- Height - Seated (Max)
- 0.134" (3.40mm)
- Supplier Device Package
- -
- Lumens/Watt @ Current - Test
- 54 lm/W Red, 76 lm/W Green, 20 lm/W Blue
- Voltage - Forward (Vf) (Typ)
- 2.1V Red, 3.2V Green, 3.2V Blue
- Thermal Resistance of Package
- 23°C/W Red, 20°C/W Green, 20°C/W Blue
- Flux @ Current/Temperature - Test
- 40lm Red, 85lm Green, 22lm Blue
