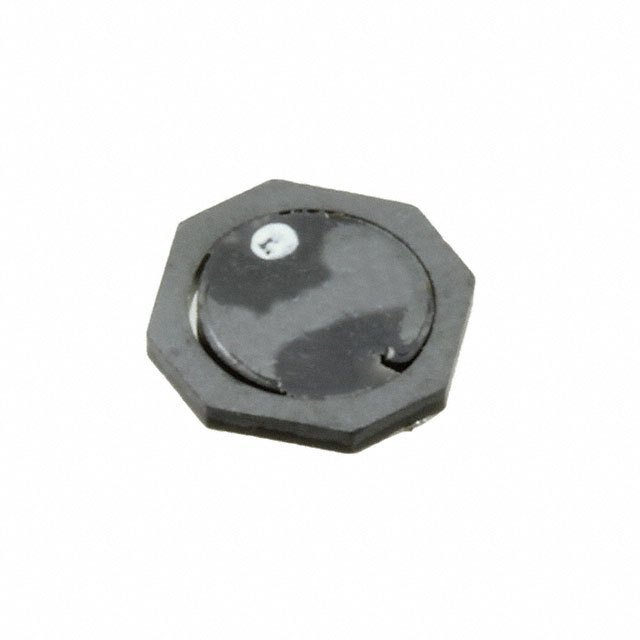

SRU6011-220Y
| Manufacturer: | Bourns, Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | SRU6011-220Y | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 22UH 800MA 390 MOHM | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Wirewound
- Series
- SRU6011
- Ratings
- -
- Q @ Freq
- 10 @ 2.52MHz
- Packaging
- Digi-Reel®
- Shielding
- Shielded
- Tolerance
- ±30%
- Inductance
- 22µH
- Part Status
- Discontinued at Digi-Key
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Ferrite
- Base Part Number
- SRU6011
- Size / Dimension
- 0.256" L x 0.244" W (6.50mm x 6.20mm)
- DC Resistance (DCR)
- 390mOhm Max
- Current - Saturation
- 480mA
- Current Rating (Amps)
- 800mA
- Height - Seated (Max)
- 0.049" (1.25mm)
- Operating Temperature
- -40°C ~ 125°C
- Supplier Device Package
- -
- Frequency - Self Resonant
- 26MHz
- Inductance Frequency - Test
- 100kHz
