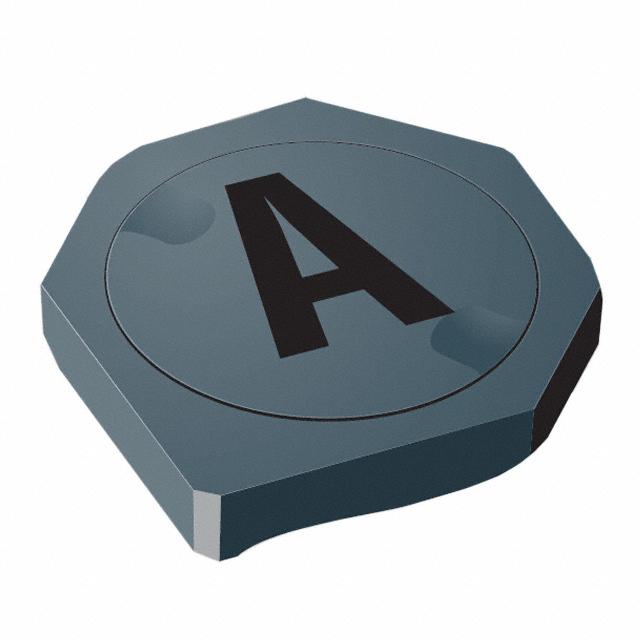

SRU3009-2R2Y
| Manufacturer: | Bourns, Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | SRU3009-2R2Y | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 2.2UH 800MA 145 MOHM | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Wirewound
- Series
- SRU3009
- Ratings
- -
- Q @ Freq
- 8.5 @ 7.96MHz
- Packaging
- Tape & Reel (TR)
- Shielding
- Shielded
- Tolerance
- ±30%
- Inductance
- 2.2µH
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Ferrite
- Base Part Number
- SRU3009
- Size / Dimension
- 0.138" L x 0.130" W (3.50mm x 3.30mm)
- DC Resistance (DCR)
- 145mOhm Max
- Current - Saturation
- 850mA
- Current Rating (Amps)
- 800mA
- Height - Seated (Max)
- 0.041" (1.05mm)
- Operating Temperature
- -40°C ~ 125°C
- Supplier Device Package
- -
- Frequency - Self Resonant
- 150MHz
- Inductance Frequency - Test
- 100kHz
