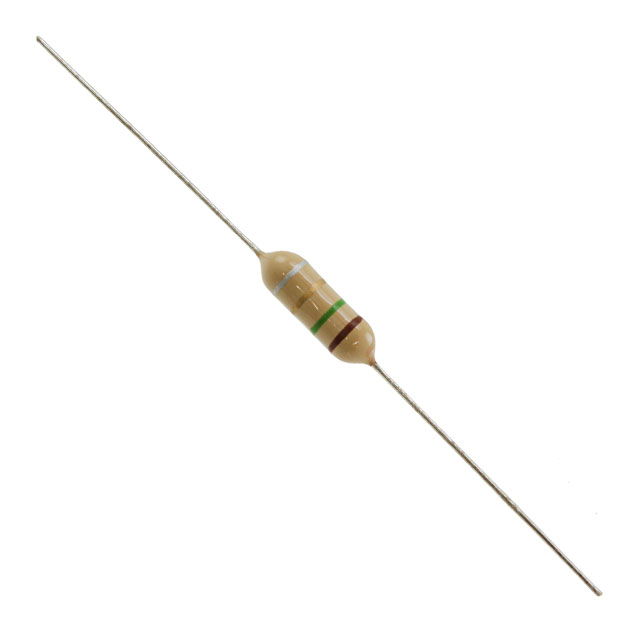

5300-03

Product Parameter

Type

Wirewound

Series

5300

Ratings

-

Q @ Freq

-

Packaging

Bulk

Shielding

Unshielded

Tolerance

±10%

Inductance

1.5µH

Part Status

Obsolete

Mounting Type

Through Hole

Package / Case

Axial

Material - Core

Ferrite

Base Part Number

5300

Size / Dimension

0.160" Dia x 0.500" L (4.06mm x 12.70mm)

DC Resistance (DCR)

20mOhm Max

Current - Saturation

2.5A

Current Rating (Amps)

3.1A

Height - Seated (Max)

-

Operating Temperature

-55°C ~ 105°C

Supplier Device Package

Axial

Frequency - Self Resonant

160MHz

Inductance Frequency - Test

7.96MHz
