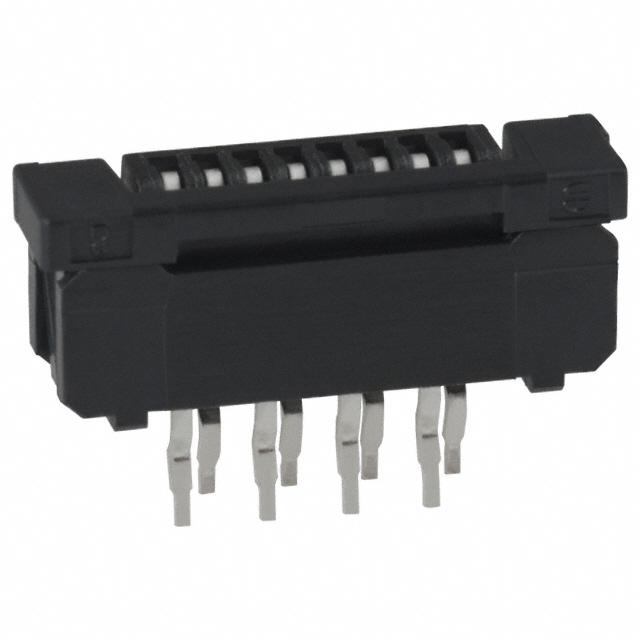

SLW8S-1C7

Product Parameter

Pitch

0.039" (1.00mm)

Series

SLW-S

Features

Zero Insertion Force (ZIF)

Packaging

Tray

Part Status

Obsolete

Termination

Kinked Pin

Housing Color

Black

Mating Cycles

20

Mounting Type

Through Hole

Actuator Color

Black

Cable End Type

Straight, Tapered

Contact Finish

Tin Alloy

Flat Flex Type

FFC, FPC

Voltage Rating

100V

Locking Feature

Slide Lock

Contact Material

Phosphor Bronze

Actuator Material

Polyamide (PA), Nylon, Glass Filled

FFC, FCB Thickness

0.30mm, 0.33mm

Height Above Board

0.217" (5.50mm)

Dielectric Material

Polyamide (PA), Nylon, Glass Filled

Number of Positions

8

Current Rating (Amps)

1A

Operating Temperature

-55°C ~ 105°C

Connector/Contact Type

Contacts, Vertical - 1 Sided

Contact Finish Thickness

-

Material Flammability Rating

UL94 V-0
