AON2240

Product Parameter

Series

-

FET Type

N-Channel

Packaging

Digi-Reel®

Vgs (Max)

±20V

Technology

MOSFET (Metal Oxide)

FET Feature

-

Part Status

Discontinued at Digi-Key

Mounting Type

Surface Mount

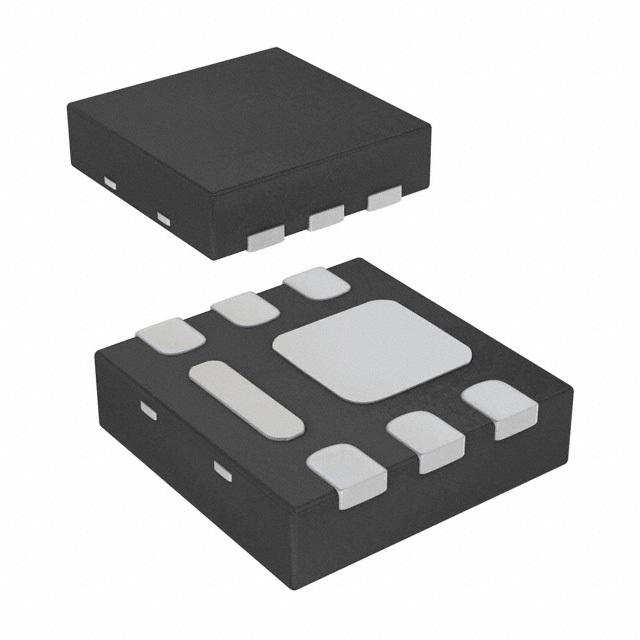

Package / Case

6-UDFN Exposed Pad

Vgs(th) (Max) @ Id

2.4V @ 250µA

Operating Temperature

-55°C ~ 150°C (TJ)

Rds On (Max) @ Id, Vgs

21mOhm @ 8A, 10V

Power Dissipation (Max)

2.8W (Ta)

Supplier Device Package

6-DFN-EP (2x2)

Gate Charge (Qg) (Max) @ Vgs

12nC @ 10V

Drain to Source Voltage (Vdss)

40V

Input Capacitance (Ciss) (Max) @ Vds

415pF @ 20V

Current - Continuous Drain (Id) @ 25°C

8A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V
