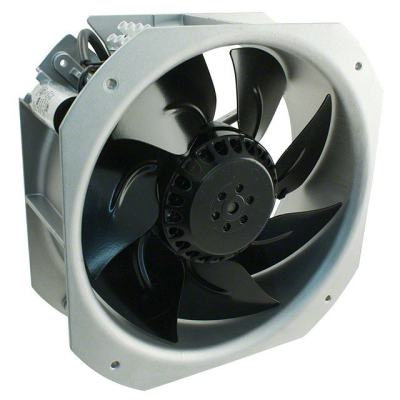

W2E200-HK38-01
Manufacturer: | ebm-papst Inc. |
In Stock 165 pcs
|
|
---|---|---|---|
Datasheet: | W2E200-HK38-01 | ||
Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
Description: | FAN AXIAL 225X80MM BALL 230VAC | $159.51 |
Fill out the below form and we will contact you as soon as possible.
Product Parameter
- RPM
- 2800 RPM
- Noise
- 61.0 dB(A)
- Width
- 80.00mm
- Series
- W2E200
- Weight
- 4.7 lbs (2.1 kg)
- Air Flow
- 606.0 CFM (16.97m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CCC, CE, CSA, GOST, UL, VDE
- Part Status
- Active
- Termination
- Terminal Block
- Bearing Type
- Ball
- Power (Watts)
- 80.0W
- Voltage Range
- -
- Static Pressure
- 0.381 in H2O (95.0 Pa)
- Voltage - Rated
- 230VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Steel
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 225mm L x 225mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.350A
- Operating Temperature
- -40 ~ 176°F (-40 ~ 80°C)
