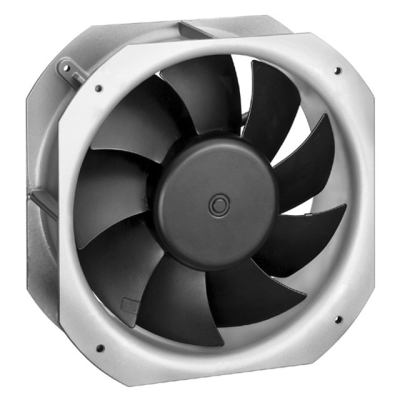

W1G200-HH77-52
| Manufacturer: | ebm-papst Inc. |
In Stock 10 pcs
|
|
|---|---|---|---|
| Datasheet: | W1G200-HH77-52 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 225X80MM BALL 24VDC | $312.04 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2950 RPM
- Noise
- 60.0 dB(A)
- Width
- 80.00mm
- Series
- W1G200
- Weight
- 4.7 lbs (2.1 kg)
- Air Flow
- 641.6 CFM (17.96m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CSA, EAC, UL
- Part Status
- Active
- Termination
- Terminal Block
- Bearing Type
- Ball
- Power (Watts)
- 55.0W
- Voltage Range
- 16 ~ 28VDC
- Static Pressure
- -
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 57000 Hrs @ 40°C
- Material - Blade
- Steel
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 225mm L x 225mm H
- Ingress Protection
- -
- Current Rating (Amps)
- -
- Operating Temperature
- -13 ~ 140°F (-25 ~ 60°C)
